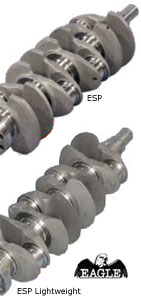

Eagle "ESP" 4340 Steel Crankshafts
Honda B Series


“ESP” Forged 4340 Steel Crankshafts feature exceptional strength and unsurpassed quality at a reasonable price. Our cranks are forged in a non-twist forging and undergo a multi-stage heat treatment process as well as stress relieving, shot peening, and nitriding. They are magnafluxed and sonic tested to insure quality. We micropolish each journal to a 3 or better R.A. A 0.125” radius is used to increase strength, so chamfered bearings must be used. The perfect choice for engines up to 1500 HP!

-------------------------------------------------------------------------

Eagle Lightweight "ESP" 4340 Steel Crankshafts
Honda B Series


Same description as above but c
ounterweights are knife-edged for reduced weight and less windage. Typical weight reduction is 5-6 Lbs.

Acura/Honda "B" Series
Part # Stroke Application Journal Width Journal Diam. Price Buy Now
1630311772 3.031 Stock B16A/A2/A3 .945 1.722 $515
1633341772 3.335 Stroker B16 .945 1.722 $515
1834331772 3.433 Stock B18C1/5 .866 1.722 $515
1835041772 3.504 Stock B18A/B, B20B/Z .945 1.722 $515
1837401772 3.740 Deck Extension Req. .945 1.722 $515
1837401890 3.740 B-Series with Lg. Rod Journal .945 1.890 $515

Acura/Honda "B" Series - Lightweight
Part # Stroke Application Journal Width Journal Diam. Price Buy Now
1633341772LW 3.335 Stroker B16 .945 1.771 $715
1834331772LW 3.433 Stock B18C1/5 .866 1.771 $715
1837401772LW 3.740 95MM Stroker .945 1.771 $715
1837401890LW 3.740 B-Series w/large Rod Journal .945 1.889 $715
2037401772LW 3.740 B20A1, 1.771" rod journals .945 1.771 $715
2037401890LW 3.740 B20A1 .945 1.889 $715





Sales/Tech Line: (603) 378-0090
Email: info@ImportPerformanceParts.net


Thank You for visiting IPP - ImportPerformanceParts.net
*All prices on this site are subject to change without notice. Import Performance Parts™ disclaims responsibility for any printing or typographical errors, and does not guarantee that all information is accurate.
